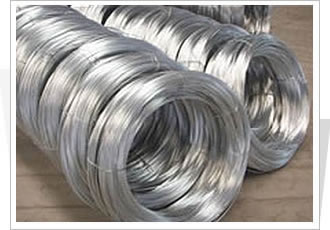

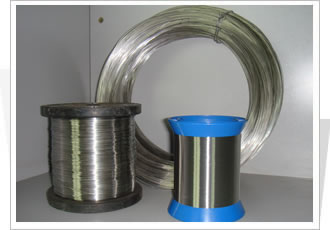

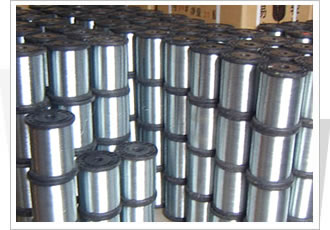

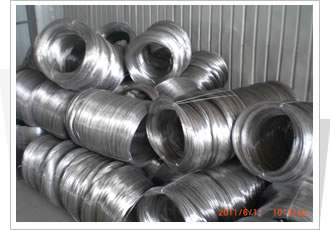

Stainless Steel Wire
Materials for Stainless Steel Wire: 304, 304L, 316, 316L.
Wire Diameter: 5mm to 0.025mm.
Peculiarity: Stainless Steel Wire enjoys many featues, such as wear-resistant, high intensity, small Stretch ability; because the fine wire, oil and ink is easy to pass; Mechanical and chemical Properties of wire mesh is stably, also the dimension definition is stably.
Applications: Stainless Steel Wire is used in wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, etc.
 |
 |
 |
 |
| Chemical composition of stainless steel wire | ||||||||
AISI |
Chemical Composition(%) |
|||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | >=0.08 | >=1.00 | >=2.00 | >=0.045 | >=0.030 | >8.00~10.50 | >18.00~20.00 | - |
| 304H | >0.08 | =1.00 | =2.00 | =0.045 | =0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | >=0.030 | >=1.00 | >=2.00 | >=0.045 | >=0.030 | >9.00~13.50 | >18.00~20.00 | - |
| 316 | =0.045 | =1.00 | =2.00 | =0.045 | =0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | >=0.030 | >=1.00 | >=2.00 | >=0.045 | >=0.030 | >12.00~15.00 | >16.00~18.00 | >2.00~3.00 |
| 430 | =0.12 | =0.75 | =1.00 | =0.040 | =0.030 | =0.60 |
16.00~18.00 | - |
| 430A | >=0.06 | >=0.50 | >=0.50 | >=0.030 | >=0.50 | =0.25 |
>14.00~17.00 | - |
| Sizes of Stainless Steel Wire | ||
| Wire Diameter(mm) | Tolerance(mm) | Max. Deviation Tolerance (mm) |
| 0.020-0.049 | +0.002 -0.001 | 0.001 |
| 0.050-0.074 | ±0.002 | 0.002 |
| 0.075-0.089 | ±0.002 | 0.002 |
| 0.090-0.109 | +0.003 -0.002 | 0.002 |
| 0.110-0.169 | ±0.003 | 0.003 |
| 0.170-0.184 | ±0.004 | 0.004 |
| 0.185-0.199 | ±0.004 | 0.004 |
| 0.200-0.299 | ±0.005 | 0.005 |
| 0.300-0.310 | ±0.006 | 0.006 |
| 0.320-0.499 | ±0.006 | 0.006 |
