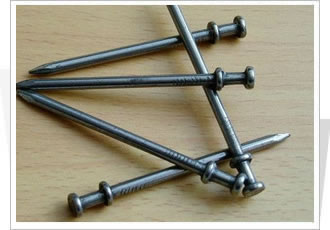

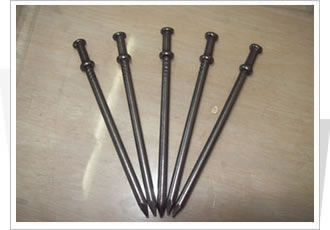

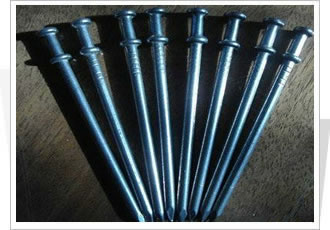

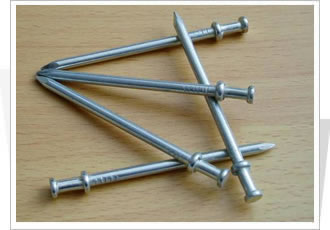

Duplex Head Nail
Material: Low Carbon Steel Q195, Q235
Surface Treatment: Polished, electronic galvanized, hot dipped galvanized
Type: Flat heads, double-headed, diamond point, polished
Length: 1/2"--8"
Head Diameter: 4.76-8.3mm
Wire Diameter: BWG19-BWG5 (2.8mm-5.2mm)
Sizes: 6d, 8d, 10d, 16d, 20d and 30d
Packing: bulk, box, bag, or according to customers' requests.
Application: scaffolding, foundation, column and other concrete forms and temporary lumber construction. Easy to pull. Save times and lumber.
 |
 |
 |
 |
| Size | Gage No. | Length Overall in. | Length under Lower Head in. | Diam Top Head in. | Diam Lower Head in. | Distance Between Head in. | Approx Number per lb |
| 6d | 11 1/2 | 2 7/64 | 1 3/4 | 3/16 | 17/64 | 1/4 | 156 |
| 8d | 10 1/4 | 2 5/8 | 2 1/4 | 15/64 | 9/32 | 1/4 | 90 |
| 10d | 9 | 3 3/16 | 2 3/4 | 1/4 | 5/16 | 5/16 | 59 |
| 16d | 8 | 3 1/2 | 3 | 9/32 | 11/32 | 3/8 | 45 |
| 20d | 7 | 4 1/64 | 3 1/2 | 5/16 | 3/8 | 3/8 | 28 |
| 30d | 6 | 4 37/64 | 4 | 21/64 | 7/16 | 7/16 | 22 |
