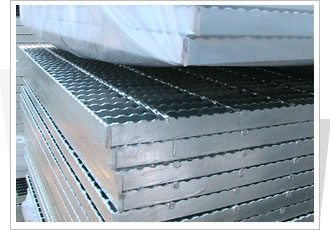

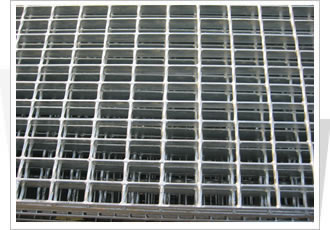

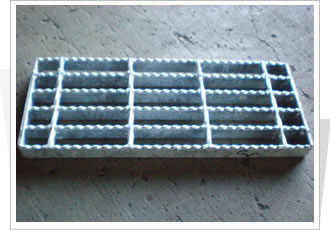

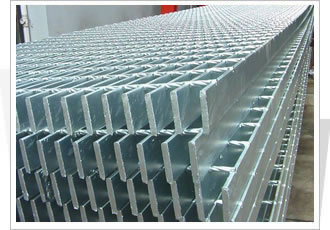

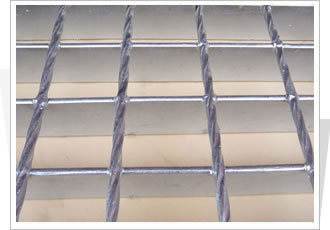

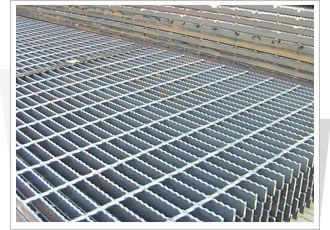

Steel Grating

Steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance.

Steel grating is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum, chemical, power plant, waste treatment plant, civil engineering projects and environmental projects.




Specification list of Steel Grating
Series No Vertical
Bar
Spacing		 Horizontal
Bar
Spacing		 Specification of Supporting Flat Steel
Width X Thickness
(mm) 　(mm)
20×3 25×3 32×3 40×3 20×5 25×5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50 - G253/60/50 G323/60/50 G403/60/50 G205/60/50 G255/60/50
32×5 40×5 45×5 50×5 55×5 60×5
4 30 100 G325/30/100 G405/30/100 G455/30/100 G500/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G500/30/50 G555/30/50 G605/30/50
5 40 100 G325/40/100 G405/40/100 G455/40/100 G500/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G500/40/50 G555/40/50 G605/40/50
6 60 50 G325/60/50 G405/60/50 G455/60/50 G500/60/50 G555/60/50 G605/60/50
