Gabion Box
Detailed Product Description
The best's a rectangular woven wire mesh box. Its strength lies in its double twisted hexagonal mesh of steel wire which is reinforced by selvedges of heavier wire running along the edges and by transverse diaphragms.
The protective coating is typically either:
heavily zinc galvanised wire
as above PLUS heavy duty PVC coating
galmac (galfan) coated with a 95%Zinc + 5% Aluminium Mischmetal Alloy
as above PLUS heavy duty PVC coating
Galmac (or Galfan) wire units offer enhanced durability, and are available upon request. This coating type is the most durable wire coating available internationally and is being increasingly used within Australia to ensure structures achieve a longer design life (2 to 3 times more durable than zinc coatings of the same mass), thereby significantly reducing the life-cycle cost of the structure.
Best have significant advantages as retaining wall structures, including C
Permeability of the front face, ensuring drainage of backfill and no hydrostatic pressures behind the wall
Flexibility, ensures the woven mesh gabions accommodate different setlements unlike rigid systems eg. welded mesh cages
Ease of construction
One of the most economical retaining systems on the market
Incorporation as required of vegetation throughout the structure
Versatility, as the structure can be formed with a vertical, battered or stepped front face as required.
 |
 |
 |
 |

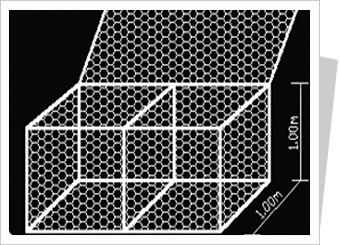

Gabion Box Sizes
| Standard gabions sizes in mesh 80mm x 100mm nominal, internal wire diameter 2.7mm | ||
| Length m | Width m | Height m |
| 2 | 0.5 | 0.5 |
| 2 | 1 | 0.5 |
| 4 | 1 | 0.5 |
| 2 | 1 | 1 |
| 4 | 1 | 1 |
| 2 | 1.5 | 1 |
| 6 | 2 | 0.5 |
Best also provide additional tools and services to assist in the design and installation of best structures.
Design support
· Free preliminary design assistance or review (including free design software, drawings, etc) to ensure the design of the structure is the most appropriate and cost-effective solution to your problem
· Provision of product and installation specification to assist in the tender preparation process
· Free training seminars or presentations held at your offices
· Free software for design or support, including an Architectural CD designed specifically for landscape architects or other professionals working with the built environment.
